Magnetic Aizu species
MAGNETIC POINT GROUP No. 83: 6/m'mm
CHARACTERS| 6/m'mm | 1 | 2z | 3z | 6z | 1' | mz' | 3z' | 6z' | 2x' | 2y' | mx | my | Vector | Bidirector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1g | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
 z |
 z |
| A2g | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -1 | -1 | -1 | -1 |
 z |
 z |
| B1g | 1 | -1 | 1 | -1 | 1 | -1 | 1 | -1 | 1 | -1 | 1 | -1 | ||
| B2g | 1 | -1 | 1 | -1 | 1 | -1 | 1 | -1 | -1 | 1 | -1 | 1 | ||
| E1g | 2 | -2 | -1 | 1 | 2 | -2 | -1 | 1 | 0 | 0 | 0 | 0 |
{x ,y }{x ,y } |
|
| E2g | 2 | 2 | -1 | -1 | 2 | 2 | -1 | -1 | 0 | 0 | 0 | 0 | ||
| A1u | 1 | 1 | 1 | 1 | -1 | -1 | -1 | -1 | -1 | -1 | 1 | 1 |
 z |
 z |
| A2u | 1 | 1 | 1 | 1 | -1 | -1 | -1 | -1 | 1 | 1 | -1 | -1 |
 z |
 z |
| B1u | 1 | -1 | 1 | -1 | -1 | 1 | -1 | 1 | -1 | 1 | 1 | -1 | ||
| B2u | 1 | -1 | 1 | -1 | -1 | 1 | -1 | 1 | 1 | -1 | -1 | 1 | ||
| E1u | 2 | -2 | -1 | 1 | -2 | 2 | 1 | -1 | 0 | 0 | 0 | 0 |
{x ,y }{x ,y } |
|
| E2u | 2 | 2 | -1 | -1 | -2 | -2 | 1 | 1 | 0 | 0 | 0 | 0 |

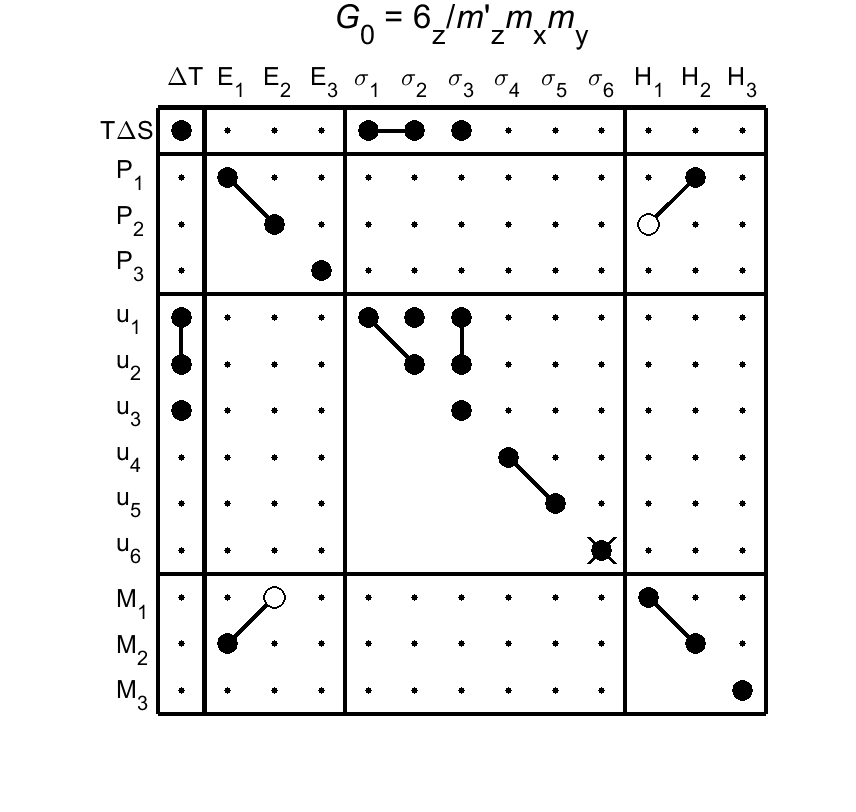

PROPERTY TENSORS
