Magnetic Aizu species
MAGNETIC POINT GROUP No. 20: 3m1'
CHARACTERS| 3m1' | 1 | 3z | 2x | 1 | 3z | mx | 1' | 3z' | 2x' | 1' | 3z' | mx' | Vector | Bidirector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1g | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
 z |
|
| A2g | 1 | 1 | -1 | 1 | 1 | -1 | 1 | 1 | -1 | 1 | 1 | -1 |
 z |
|
| Eg | 2 | -1 | 0 | 2 | -1 | 0 | 2 | -1 | 0 | 2 | -1 | 0 |
{x ,y } |
|
| A1u | 1 | 1 | 1 | -1 | -1 | -1 | 1 | 1 | 1 | -1 | -1 | -1 |
 z |
|
| A2u | 1 | 1 | -1 | -1 | -1 | 1 | 1 | 1 | -1 | -1 | -1 | 1 |
 z |
|
| Eu | 2 | -1 | 0 | -2 | 1 | 0 | 2 | -1 | 0 | -2 | 1 | 0 |
{x ,y } |
|
| mA1g | 1 | 1 | 1 | 1 | 1 | 1 | -1 | -1 | -1 | -1 | -1 | -1 |
 z |
|
| mA2g | 1 | 1 | -1 | 1 | 1 | -1 | -1 | -1 | 1 | -1 | -1 | 1 |
 z |
|
| mEg | 2 | -1 | 0 | 2 | -1 | 0 | -2 | 1 | 0 | -2 | 1 | 0 |
{x ,y } |
|
| mA1u | 1 | 1 | 1 | -1 | -1 | -1 | -1 | -1 | -1 | 1 | 1 | 1 |
 z |
|
| mA2u | 1 | 1 | -1 | -1 | -1 | 1 | -1 | -1 | 1 | 1 | 1 | -1 |
 z |
|
| mEu | 2 | -1 | 0 | -2 | 1 | 0 | -2 | 1 | 0 | 2 | -1 | 0 |
{x ,y } |

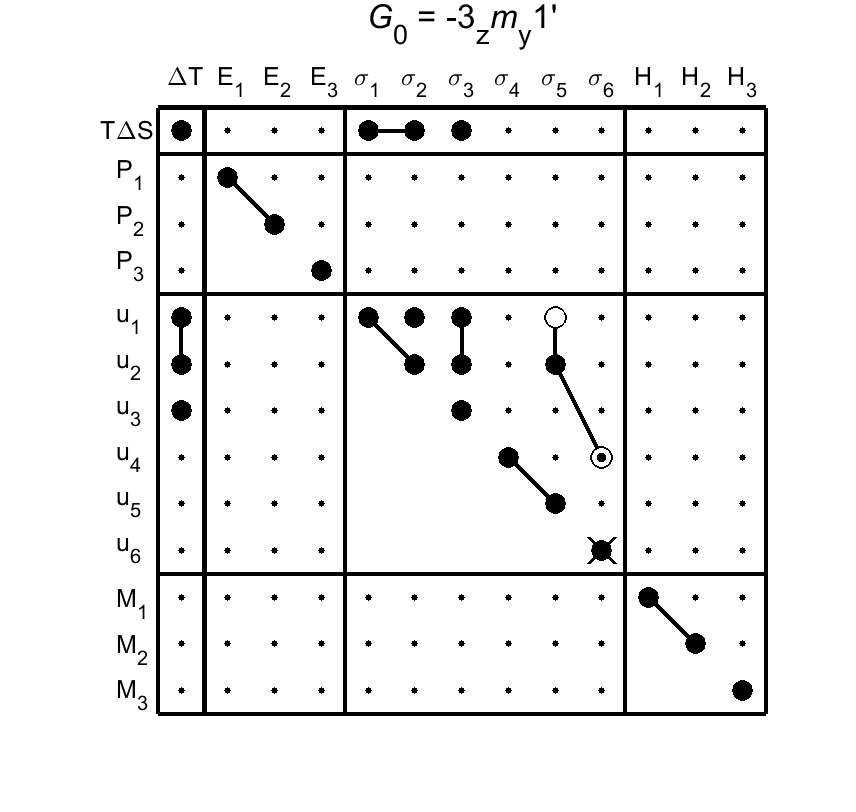

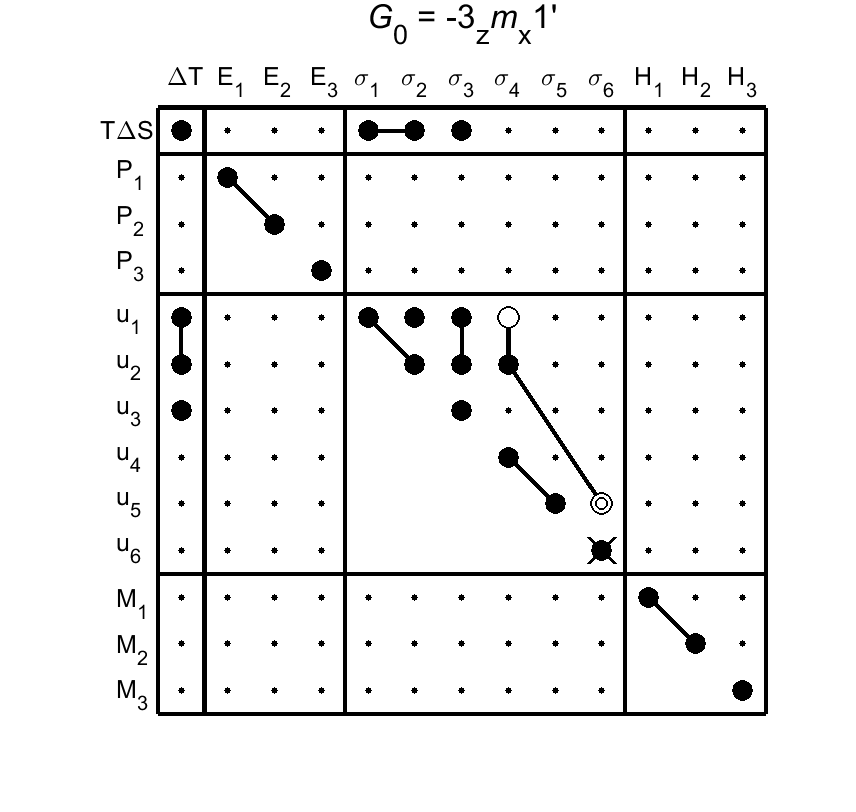

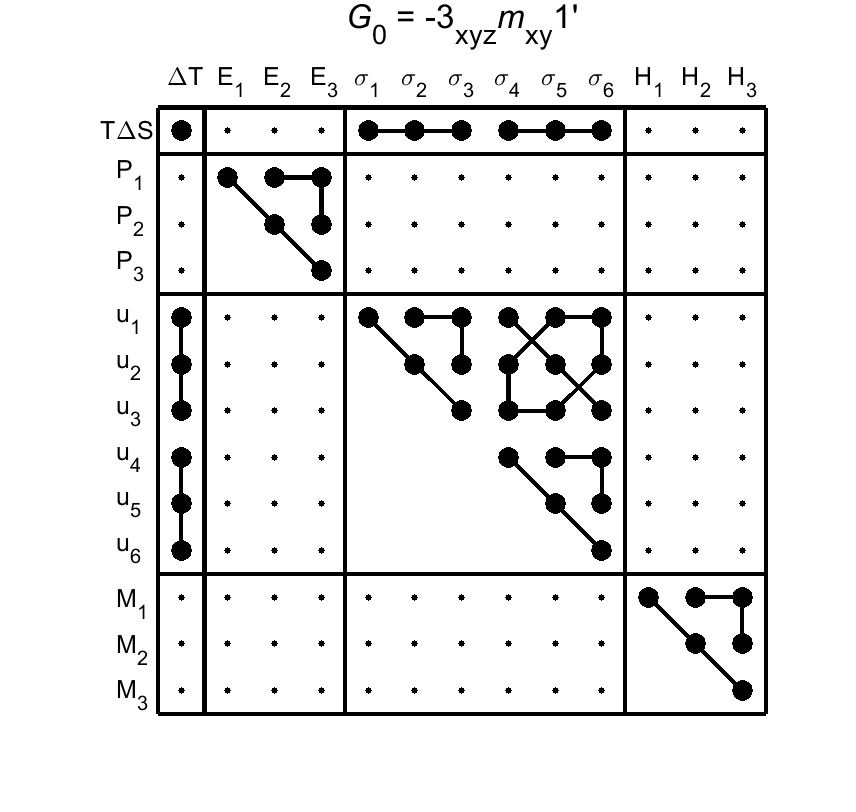

PROPERTY TENSORS
